Chainway U300-4, 33dBm UHF ETSI 4-port reader Android.13/WIFI/BT/PoE/PoE+, incl pwr supp
Chainway
€750.54 excl. BTW
€908.15 incl. BTW

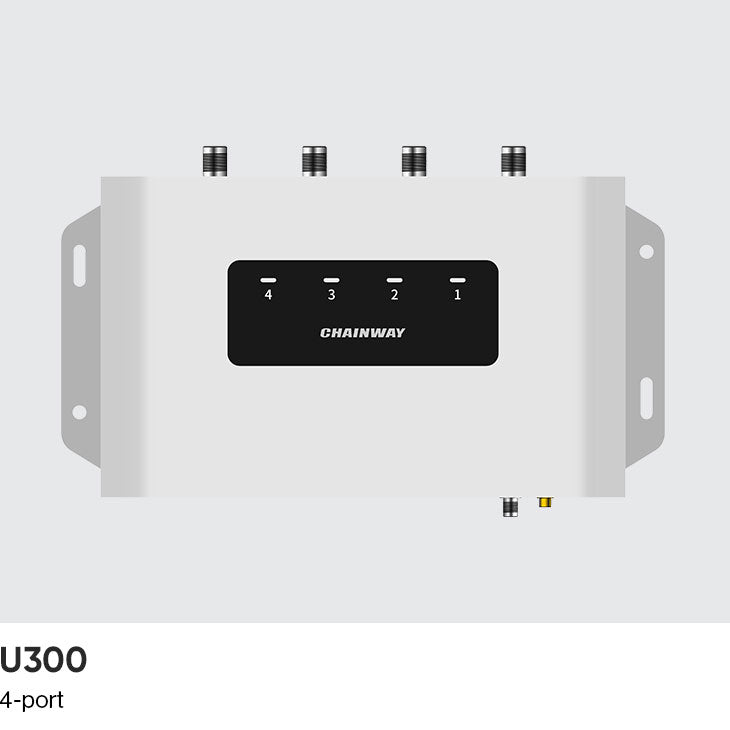

U300 Fixed RFID Reader (Android 11)
Android 11 OS, Multiple Interfaces, More Powerful UHF RFID Performance
Chainway U300 is a high-performance fixed RFID reader. Adopting Android 11 operating system, 2.0GHz Quad-core CPU, U300 possesses powerful data processing capabilities. Based on the Impinj E Series chips and supporting the Impinj Gen2X, the reader has stronger UHF performance. The reader Integrates RS232, RJ45, HDMI and other interfaces, and supports DC, POE, and POE+ power supplies. U300 can meet the application needs in complex environments such as warehousing, asset tracking, vehicle identification, library management, production line management, medical device cabinet, retail, etc.
| UHF RFID | |
| Engine | Based on Impinj E Series chips |
| Frequency | 865-868MHz / 920-925MHz / 902-928MHz |
| Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C Supports Impinj Gen2X |
| Antenna | Support multiple antennas, such as 6dBic, 9dBic, etc. |
| Power | DC (24V)、POE (802.3af 13W)、POE+ (802.3at 25.5W) |
| Output Power | 1W (30dBm, support +5~+30dBm adjustable, POE / DC power supply) Optional 2W (33dBm, support +10~+33dBm adjustable, for Latin America, etc., POE+ / DC power supply) |
| Output Power Precision | +/- 1dB |
| Output Power Flatness | +/- 0.2dB |
| Receive Sensitivity | < -84dBm |
| RSSI | Support |
| Ambient Temp Monitor | Support |
| Fastest Read Rate | 1300+ tags/sec |
| Antenna Detector | Support |
| Antenna Port | 4 / 8 Channel 50Ω RF Connector RP-TNC Female |
This reader has an Android operating system on an Android 11/13 platform with a Java SDK. There is a standard Android application for testing and demonstration purposes.
